Are you aware that a fire can start in your home without you even noticing? House fires often begin so quietly that occupants have no idea that their home is on fire until it’s too late.
Having a properly functioning smoke detection system is crucial for safety. This comprehensive guide will walk you through the process of installing smoke alarms correctly, ensuring your home is protected.
We’ll cover the legal requirements, optimal positioning, necessary tools, and wiring techniques. By the end of this guide, you’ll have the knowledge to either install your alarm system yourself or effectively communicate with a professional electrician.
Key Takeaways
- Understand the legal requirements for smoke detectors in your home.
- Learn the optimal positioning for smoke alarms to ensure maximum safety.
- Discover the necessary tools and wiring techniques for installation.
- Know when to call in a professional electrician for assistance.
- Ensure your smoke detection system functions correctly during a fire emergency.

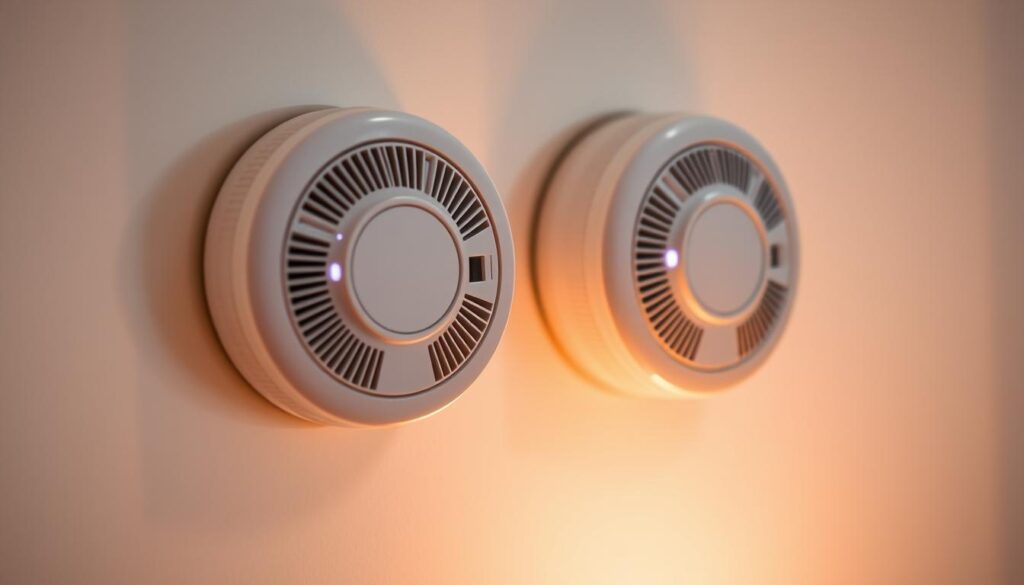

Understanding Mains-Powered Smoke Alarms
To ensure your home is equipped with effective fire detection, it’s essential to understand mains-powered smoke alarms. Mains-powered smoke alarms, also known as hardwired smoke detectors, are directly connected to your home’s electrical system. This connection provides a constant power supply, eliminating the risk associated with dead batteries in traditional battery-powered smoke detectors.
Benefits of Hardwired Smoke Detectors
Hardwired smoke detectors offer several benefits, including a constant power supply and the ability to interconnect multiple detectors. When one alarm detects smoke, all interconnected alarms sound, providing an early warning system regardless of where a fire starts in your home. Additionally, these systems typically include a battery backup that kicks in during power outages, ensuring continuous protection.
- Mains-powered smoke alarms connect directly to your home’s electrical system.
- These systems feature battery backup for continuous protection during power outages.
- Hardwired smoke detectors can be interconnected for comprehensive coverage.
Legal Requirements in the UK
In the UK, there are specific legal requirements for the installation of smoke alarms, particularly in new builds and during significant renovations. These requirements include specifications on the number of detectors needed, their placement, and the type of detection technology suitable for different areas of the home. Mains-powered systems must be installed according to BS7671 (UK electrical regulations) and meet BS5839-6 standards for domestic fire detection systems.
- UK building regulations specify requirements for smoke alarm installation.
- The regulations cover the number, placement, and type of smoke detectors.
- Mains-powered systems must comply with BS7671 and BS5839-6.
Planning Your Smoke Alarm Installation
Before installing mains-powered smoke alarms, it’s crucial to plan carefully to ensure comprehensive coverage throughout your home. Proper planning involves determining the number of alarms needed, choosing optimal locations, and understanding circuit requirements.
Determining How Many Alarms You Need
The law and recommendations for the number of smoke alarms required vary depending on your location and property type. For the fastest detection of fire, it’s recommended to install a smoke detector in the circulation space on each level of your home, including hallways and landings, as well as in living spaces and bedrooms.
Choosing the Optimal Locations
When deciding where to install your smoke alarms, consider the layout of your home. If installing on a ceiling, the alarm should be at least 300mm from a standard light fitting and 1500mm from any fluorescent light fitting. On a wall, the alarm should be between 100mm and 300mm below the ceiling and at least 300mm from the nearest corner.
Circuit Requirements for Mains-Powered Alarms
The electrical circuit powering your smoke alarms must be a 24-hour voltage circuit that cannot be turned off by a switch, as specified in BS5839: Part 6. You can use either an independent circuit dedicated solely to smoke alarms or a regularly used lighting circuit with separate electrical protection.
| Installation Considerations | Ceiling Mounted | Wall Mounted |
|---|---|---|
| Distance from Light Fitting | 300mm from standard, 1500mm from fluorescent | N/A |
| Distance from Walls/Corners | At least 300mm | At least 300mm from nearest corner |
| Circuit Requirements | 24-hour voltage circuit, not controlled by a switch | |
Tools and Materials Needed to Install Mains-Powered Smoke Alarms
When installing mains-powered smoke alarms, having the right tools and materials is crucial for a safe and compliant installation. You’ll need to gather specific equipment to ensure your smoke detectors are installed correctly and meet UK electrical regulations.
Essential Tools for the Job
To start, you’ll require essential tools such as a 6-foot step ladder, tape measure, pencil, stud finder, drywall saw, cordless drill, fish tape, cable ripper, wire stripper, and voltage tester. These tools will help you measure and mark positions, locate ceiling joists or wall studs, and run cables through walls and ceilings.
Required Materials and Components
The primary materials needed include mains-powered smoke detectors that comply with BS EN14604 and carry the British Standards Kitemark. You’ll also need old-work electrical boxes, UL-approved wire connectors, 2-wire NM cable, and 3-wire NM cable. Additionally, detector mounting plates specific to your smoke detector model, cable clips, and appropriate fixings for your ceiling or wall type are required.
For interconnecting multiple smoke detectors, you’ll need 3-core and earth cable to enable all alarms to sound simultaneously. Terminal blocks and appropriate connectors that comply with UK wiring regulations are essential for making secure electrical connections. Don’t forget to check if your smoke detector requires backup batteries.

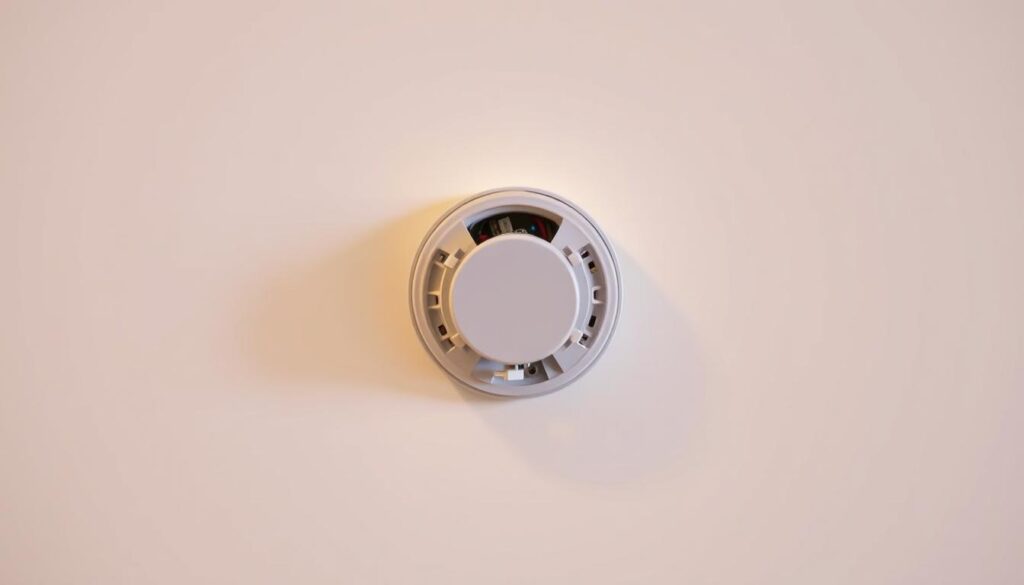

Step-by-Step Installation Process
The installation of mains-powered smoke alarms is a critical step in enhancing home safety, and this section will walk you through the process. Ensuring that your smoke detection system is correctly installed is vital for the safety of your home and its occupants.
Safety Precautions Before Starting
Before beginning any electrical work, it is crucial to ensure that the power is turned off at the consumer unit (fuse box). Use a voltage tester to verify that no current is flowing through the circuit you’ll be working with. This step is essential to prevent electrical shock or injury.
Mounting the Detector Base Plate
Identifying the optimal mounting locations for your smoke detectors is the next step, following the positioning guidelines discussed earlier. When mounting the detector base plate, use appropriate fixings for your ceiling or wall material to ensure the base is securely attached. This prevents the alarm from falling and ensures it functions correctly.
Running and Connecting the Wiring
Running cables requires careful planning, especially in existing homes where you may need to lift floorboards or create access points to route wiring through walls and ceilings. It’s essential to follow the UK wiring colour codes precisely: brown for Live (L), blue for Neutral (N), and grey (or sometimes marked with black tape) for the Interconnect (I) wire when connecting multiple alarms.
Understanding the Wiring Colour Codes
The wiring colour codes are crucial for the safe and correct installation of your smoke detection system. The Live wire is brown, the Neutral wire is blue, and the Interconnect wire is grey or marked with black tape. Understanding these codes ensures that your wiring is done correctly.
Making Proper Wire Connections
When making wire connections, strip approximately 6mm of insulation from each wire and use appropriate connectors or terminal blocks. Ensure all connections are tight and secure to prevent any issues with your smoke detection system.
Interconnecting Multiple Alarms
For interconnecting multiple alarms, the dedicated interconnect wire allows all units to communicate, ensuring that when one detector senses smoke, all alarms throughout the property will sound. This feature enhances the safety of your home by providing a comprehensive warning system.
Securing the Alarm to the Base Plate
After wiring is complete, carefully secure the smoke detector to its mounting plate according to the manufacturer’s instructions. Typically, this involves aligning tabs and twisting the unit until it clicks into place. Ensure it is securely attached to prevent it from being dislodged.
When to Call a Professional Electrician
If you’re uncomfortable working with electrical systems, if your installation requires modifications to your consumer unit, or if you need to run new circuits through difficult-to-access areas of your home, it’s recommended to seek the assistance of a professional electrician. They can ensure that the installation is done safely and correctly.
Testing is crucial after installation. Press the test button on each alarm to verify not only that each unit works individually but also that the interconnection function operates correctly if multiple alarms are installed. This final check ensures your smoke detection system is fully functional and ready to provide safety for your home.
Conclusion
As we’ve discussed, installing hard-wired smoke detectors requires attention to detail, but it’s a worthwhile effort for enhanced safety. By following the guidelines outlined in this article, you can ensure that your mains-powered smoke alarms are installed correctly, providing comprehensive protection for your home and family.
Remember to test your smoke detectors monthly and replace backup batteries according to the manufacturer’s guidelines. If you’re unsure about any aspect of the installation, consider hiring a qualified electrician to ensure compliance with UK electrical regulations.
Properly installed and maintained smoke alarms will significantly enhance your home’s safety, giving you peace of mind and protecting your loved ones from the dangers of fire.
